    Asus Z9PE-D8 WS Workstation Motherboard - Intel C602 Chipset - Socket R LGA-2011 Item # 567621

     |

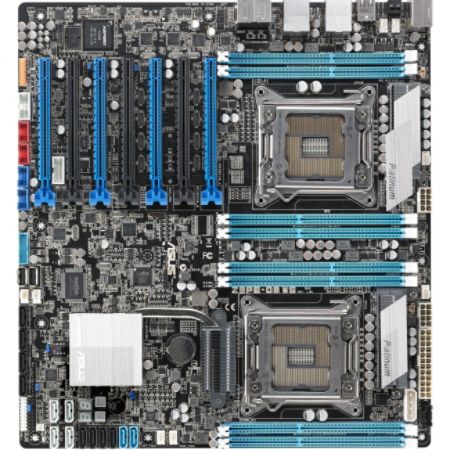

    Asus Z9PE-D8 WS Workstation Motherboard - Intel C602 Chipset - Socket R LGA-2011
    $ 593 .99 / each $593.99
    Out of stock for delivery

      Description

      The ASUS Z9PE-D8 WS delivers a unique proposition in the market, offering the best of both mainstream and server boards on a standard-sized, 12" x 13" EEB form factor. It supports 4-way SLI and quad CrossFireX with PCI Express 3.0 speeds, dual Intel Xeon E5-2600 processors, an 8-DIMM memory design, and the latest storage standards, including ASUS SSD Caching. This is the first ASUS dual-CPU motherboard that possesses both the features of a mainstream motherboard and a dedicated server board. The Z9PE-D8 WS creates a platform well-suited to the needs of professional workstation application users, including researchers in fluid dynamics, medical sciences, engineering, and financial modeling.

      Back To Top

      Product Details

      Item # 567621
      OfficeMax # 23580171
      Manufacturer # NG0393
      Number of SATA Interfaces 14
      Number of PS/2 Ports 1
      Hardware Features ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detect technology, ASUS Q-Shield, Intel QuickPath Architecture, Intel Turbo Boost Technology 2.0, NVIDIA 4-way SLI Technology Support, ASUS SSD Caching, Fanless Design Heat-pipe, Q-Code, AMD Quad CrossFireX technology support, ASUS 2 Phase DRAM Power Design, 7+1 Phase Power Design
      Onboard LEDs Header Yes
      Power Supply Supported EPS12V
      Multi GPU Supported SLI; CrossFireX
      Memory Speed Supported 2.13 GHz (O.C.); 2 GHz (O.C.); 1.87 GHz (O.C.); 1.60 GHz; 1.33 GHz; 1.07 GHz
      S/PDIF Yes
      Certifications & Standards FCC; CE
      Compatible Processors Xeon E5-2600 series
      Sleep / Wake Up Wake on LAN (WOL), wake on ring (WOR)
      Number of Network (RJ-45) Ports 2
      Internal Interfaces 2 x USB 2.0 - Type A ¦ 1 x USB 3.0 - header ¦ 4 x USB 2.0 ¦ 2 x serial ¦ 2 x FireWire ¦ 1 x SPDIF out ¦ 1 x audio
      Registered or Buffered Registered, unbuffered
      Audio Line In Yes
      Storage Interfaces SATA-300 -connectors: 8 x 7pin Serial ATA - 8 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 -connectors: 4 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 10
      Number of PCI Express x16 Slots 7
      Total Processor Supported 2
      Total Number of PCI Express Slots 7
      Total Number of Onboard FireWire/i.LINK Ports
      64-bit Processing Yes
      Bus Clock 1600 MHz, 1333 MHz, 1066 MHz, 800 MHz
      Max Processors Qty 2
      RAID Supported Yes
      brand name Asus
      Audio Channels 7.1
      Network Controller Intel 82574L
      Processor Technology Turbo Boost Technology 2.0
      Number of USB 2.0 Ports 6
      Buttons & Keys Reset; Power
      Number of Onboard FireWire/i.LINK 400 Ports
      PS/2 Port Yes
      Memory Form Factor UDIMM
      Processor Socket LGA2011 Socket
      Chipset Model C602
      Sound Controller Manufacturer Realtek
      PCI Express Standard PCI Express 3.0
      Total Number of Onboard USB Ports 8
      Power Connectors 24-pin main power connector, 4-pin auxiliary power connector, 2 x 8-pin ATX12V connectors
      RAID Levels 0; 1; 5; 1+0
      Processor Supported Xeon Octa-core; Xeon Hexa-core
      BIOS Features DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ACPI 2.0a support, SMBIOS 2.6 support, UEFI BIOS, iKVM support
      Total Number of USB Ports 8
      Onboard Audio Header Yes
      width 12 in
      package contents Z9PE-D8 WS Workstation Motherboard; User's Manual; I/O Shield; 2 x COM Port Cable(s); 8 x SATA 3Gb/s Cable(s); 6 x SATA 6Gb/s cable(s); 1 x 3-Way SLI bridge(s); 1 x 4-Way SLI bridge(s); 1 x SLI bridge(s); 1 X 2-Port Usb2.0 + 1394 Bracket(S)
      Number of Memory Slots 8
      Sound Controller Model ALC898
      depth 13 in
      Product Name Z9PE-D8 WS Workstation Motherboard
      Audio Codec Realtek ALC898
      manufacturer ASUS Computer International
      Number of S/PDIF Out Ports 1
      Data Bus Transfer Rate 8 GT/s
      Audio Line Out Yes
      Max Size 256 GB
      Maximum Memory 256 GB
      Supported RAM Integrity Check Non-ECC, ECC
      controller type Serial ATA/600; Serial ATA/300
      Number of Onboard USB 2.0 Ports 6
      Number of USB 3.0 Ports 2
      Gigabit Ethernet Yes
      Network (RJ-45) Yes
      Microphone Port Yes
      Onboard Serial Header Yes
      Memory Standard DDR3-2133/PC3-17000 (O.C.); DDR3-2000/PC3-16000 (O.C.); DDR3-1866/PC3-15000 (O.C.); DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500
      Number of Total Expansion Slots 7
      Chipset Manufacturer Intel
      Memory Technology DDR3 SDRAM
      form factor SSI EEB
      Number of Onboard USB 3.0 Ports 2
      Onboard S/PDIF Header Yes
      model name Z9PE-D8 WS
